Mitosis - Using Astro.js as the dev server to preview the component with hot-reload

Patrick Chiu • 2023/08/31

1. What is Mitosis
2. Astro.js as the dev server
3. Steps

• Set up Mitosis
• Set up Astro.js in /test-app
  • Framework integrations
  • Astro.js folder structure
• Update the build script
• (Bonus) .gitignore
• (Bonus) Settings of Publishing to NPM

TL;DR Here’s the Mitosis Astro.js Starter repo to jump start the development. I built a GitHub Activity Widget component with a similar setup, which compiles to native React, Svelte, Vue, SolidJS and Qwik components.

What is Mitosis

In case you are new to Mitosis, Mitosis enables you to develop a consistent design system across multiple frameworks e.g. React, Svelte and Vue.

Its syntax is pretty similar to React. It allows you to write your component in JSX and transforms into native components of the various frameworks.

Astro.js as the dev server

While Mitosis is great at generating framework-native components, it doesn’t come with a dev server to let you preview the component. You may ask, why do we want to preview the component in various frameworks, instead of only previewing it in one of them e.g. svelte?

Turns out there are quite a few of gotchas and open issues in using Mitosis (when this tutorial is written). Sometimes the generated code works perfectly in React and Vue but not Svelte. Sometimes the others. It would be great if

• We could preview most (if not all) generated components in a single page
• Even better, have hot-reload enabled

In this tutorial, we will walk through the steps to set up a hot-reload dev server with Astro.js.

Note: Astro supports a variety of popular frameworks including React, Preact, Svelte, Vue, SolidJS, AlpineJS and Lit with official integrations. While for other frameworks e.g. Angular and Qwik, you may still benefit from this tutorial and you would need to further set up the community maintained framework integrations.

Steps

1. Set up Mitosis

This step references the official Create a new project cli guide with the following modifications.

• We aren’t initializing test-apps for each framework. Instead, we would run one test-app with Astro.js for all frameworks.
• In terms of NPM package, we aren’t scoping the component under a namespace and output various packages like @my-awesome-component/library-react and @my-awesome-component/library-svelte etc. Instead, we publish all components in one package only my-awesome-component. The output components can then be imported like my-awesome-component/react and my-awesome-component/svelte etc

The folder structure should look like this by the end of this step.

.
├── src/
│   └── MyAwesomeComponent.lite.tsx
├── mitosis.config.cjs
├── package.json
└── tsconfig.json

Without further ado, let’s initiate an empty project.

mkdir my-awesome-component
cd ./my-awesome-component
npm init -y

Install the relevant packages

npm i @builder.io/eslint-plugin-mitosis @builder.io/mitosis @builder.io/mitosis-cli
npm i watch --save-dev

Setup mitosis.config.cjs. In the targets field, place all downstream frameworks to compile.

/**
 * @type {import('@builder.io/mitosis').MitosisConfig}
 */
module.exports = {
  files: 'src/**',
  targets: ['react', 'svelte', 'solid', 'vue'],
  dest: 'output',
  commonOptions: { typescript: true },
  options: { react: { stylesType: 'style-tag' }, svelte: {}, qwik: {} },
};

Setup tsconfig.json

{
  "compilerOptions": {
    "target": "ESNext",
    "strict": true,
    "jsx": "preserve",
    "noImplicitAny": false,
    "moduleResolution": "node",
    "jsxImportSource": "@builder.io/mitosis"
  },
  "include": ["src"]
}

Initialize src/MyAwesomeComponent.lite.tsx

import { useState } from '@builder.io/mitosis';

export default function MyComponent(props) {
  const [name, setName] = useState('Steve');

  return (
    <div>
      <input
        css={{ color: 'red' }}
        value={name}
        onChange={(event) => setName(event.target.value)}
      />
      Hello! I can run natively in React, Vue, Svelte, Qwik, and many more
      frameworks!
    </div>
  );
}

2. Set up Astro.js in /test-app

The folder structure should look like this by the end of this step. We will focus on test-app

.
├── src/
│   └── MyAwesomeComponent.lite.tsx
├── test-app/
│   └── astro.config.mjs
├── mitosis.config.js
├── package.json
└── tsconfig.json

Create astro project with the following config

npm create astro@latest

# Where should we create your new project?
./test-app

# How would you like to start your new project?
Empty

# Do you plan to write TypeScript?
Yes

# How strict should TypeScript be?
Strict

# Install dependencies?
Yes

# Initialize a new git repository?
No

Cd into the directory

cd test-app

2.1. Framework integrations

Follow the official integration guide to add React.js, Vue, Svelte and Solid.js. (You can add more if you need)

npx astro add react
npx astro add vue
npx astro add svelte
npx astro add solid

Since both React.js and Solid.s uses JSX, we need to let Astro.js where to find both correspondingly. Update astro.config.mjs with the following settings.

import { defineConfig } from 'astro/config';

import react from '@astrojs/react';
import solid from '@astrojs/solid-js';
import svelte from '@astrojs/svelte';
import vue from '@astrojs/vue';

export default defineConfig({
  integrations: [
    react({ include: ['**/react/**'] }),
    solid({ include: ['**/solid/**'] }),
    svelte(),
    vue(),
  ],
});

2.2. Astro.js folder structure

Let’s structure our Astro.js test-app like the following and import all components to index.astro.

.
├── test-app/
│   ├── src/
│   │   ├── components/
│   │   │   ├── react/
│   │   │   │   └── ReactApp.tsx
│   │   │   ├── solid/
│   │   │   │   └── SolidApp.tsx
│   │   │   ├── SvelteApp.svelte
│   │   │   └── VueApp.vue
│   │   └── pages/
│   │       └── index.astro
│   └── astro.config.mjs

See the GitHub repo for content in ReactApp.tsx, SvelteApp.svelte, VueApp.vue and SolidApp.tsx.

For index.astro, replace with the following. This wires up various framework components into a single Astro.js page.

---
import ReactApp from '../components/react/ReactApp.jsx'
import SvelteApp from '../components/SvelteApp.svelte'
import VueApp from '../components/VueApp.vue'
import SolidApp from '../components/solid/SolidApp.jsx'
---

<html lang="en">
  <head>
    <meta charset="utf8" />
    <title>Test App</title>
  </head>

  <body>
    <div class="w-50">
      <div class="title">
        <span>React</span>
      </div>
      <ReactApp client:only="react" />
    </div>
    <div class="w-50">
      <div class="title">
        <span>Svelte</span>
      </div>
      <SvelteApp client:load />
    </div>
    <div class="w-50">
      <div class="title">
        <span>Vue</span>
      </div>
      <VueApp client:only="vue" />
    </div>
    <div class="w-50">
      <div class="title">
        <span>Solid</span>
      </div>
      <SolidApp client:only="solid-js" />
    </div>
  </body>
</html>

<style>
  body {
    background-color: aliceblue;
  }

  .w-50 {
    display: inline-block;
    width: calc(48% - 12px * 2 - 8px * 2);
    margin: 8px;
    padding: 12px;
    border-radius: 8px;
    box-shadow: 0px 1px 4px rgba(0, 0, 0, 0.1);
    background-color: white;
  }

  .title {
    display: flex;
    align-items: center;
    gap: 6px;
    margin-bottom: 8px;
  }
</style>

3. Update the build script

Now let’s wire up Mitosis and Astro.js! Update the root package.json with the following.

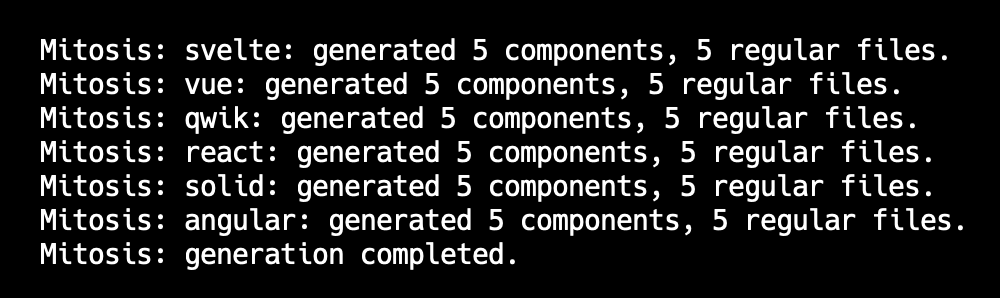

• npm run build: Mitosis generates downstream components to ./output and we copy it to ./test-app/src
• npm run start: we watch changes in ./src and npm run build when there are changes

{
  // ...
  "scripts": {
    "start": "watch \"npm run build\" ./src",
    "build": "mitosis build --c mitosis.config.cjs && cp -R ./output ./test-app/src",
    "lint": "eslint"
  }
  // ...
}

4. (Bonus) .gitignore

Mitosis build script would compile the downstream component to ./output. Let’s ignore it together with ./node_modules and Astro.js’ generated types

# dependencies
node_modules/

# Mitosis
output/

# Astro.js
.astro/

5. (Bonus) Settings of Publishing to NPM

Now you have built an awesome Mitosis component. Let’s update package.json so that developers of various frameworks can use your component!

(Don’t forget to change the actual package name from my-awesome-component to something else!)

{
  "name": "my-awesome-component",
  // ...
  "main": "./output/react/src/MyAwesomeComponent.tsx",
  "exports": {
    "./react": "./output/react/src/MyAwesomeComponent.tsx",
    "./svelte": "./output/svelte/src/MyAwesomeComponent.svelte",
    "./vue": "./output/vue/src/MyAwesomeComponent.vue",
    "./solid": "./output/solid/src/MyAwesomeComponent.tsx"
  },
  "files": ["output/**/*"]
}

The above settings do 2 things

1. You only publish the generated downstream components in the ./output directory to NPM
2. Your component can be imported with…

// React
import MyAwesomeComponent from 'my-awesome-component/react';

// Vue
import MyAwesomeComponent from 'my-awesome-component/vue';

// Svelte
import MyAwesomeComponent from 'my-awesome-component/svelte';

// Solid
import MyAwesomeComponent from 'my-awesome-component/solid';

Hope you enjoy the journey of setting up Mitosis with Astro.js which enables you to preview all the generated components at a glance! Lastly, do you need a quick walkthrough on creating a Mitosis component? Here’s how to develop the Github Activity Calendar with Mitosis 😉
